Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

  • 1
  • 2
  • 3

Brand Name : HWASHI

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Hwashi Horizontal Type Car Stabilizer Link Welding Machine/Auto Push Rod Spot Welder

Application : Welding for Car Stabilizer Link

Size : according to your products

Condition : New

Warranty : 12months

Certificate : CE/CCC/ISO

Service Life : 8-10 years

Contact Now

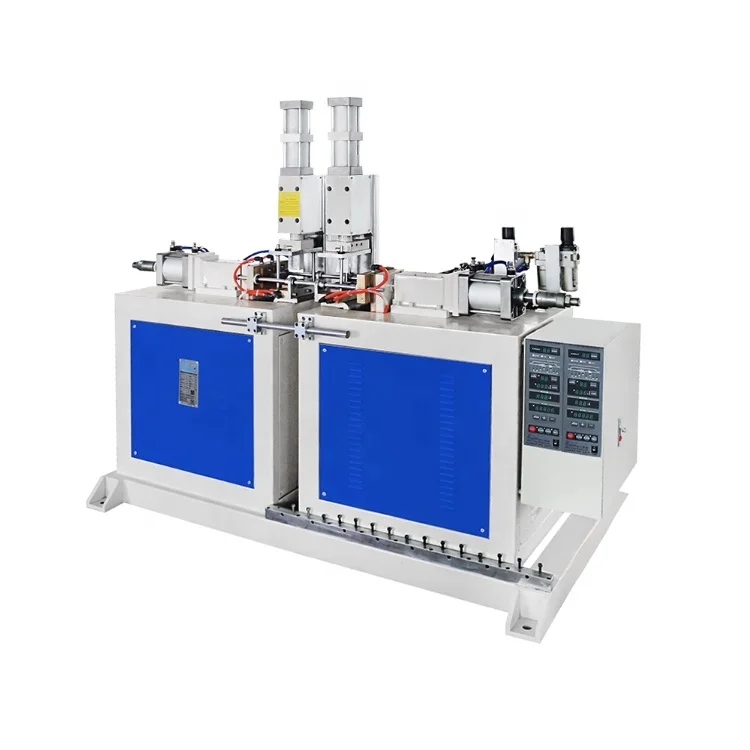

Hwashi Horizontal Type Car Stabilizer Link Welding Machine/Auto Push Rod Spot Welder

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

Hwashi Car Parts Stabilizer Link Welding Machine Link Housing Welder, Under the operation of transformer, butt welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

The shaft part will be clamped by cylinders while the bushing part will be located in the lower fixture. The lower fixture will be designed to match the bushing in order to ensure the effective conductivity of welding current. After starting the welding, the cylinder will clamp the shaft, then the lower fixture will rise up to welding.

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

High Precision Double Side Welding Fixture

Two sides can be welded at the same time. We designed the special fixture which could meet the high precision about ±0.2mm to ensure the welded parts could reach industrial standard.

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

Car Stabilizer Link Sample

Good welding quality. No deformation after welding.

Two sides welding helps to increase the production rate dramatically. It takes only 2-3sec to finish one product.

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

Optional Single Head Welding

If you have limit budget or low production rate requirement, you can also choose the single head machine which will do welding of the two sides one by one.

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot WelderHorizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot WelderHorizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder

Horizontal Type Car Stabilizer Link Welding Machine Auto Push Rod Spot Welder
